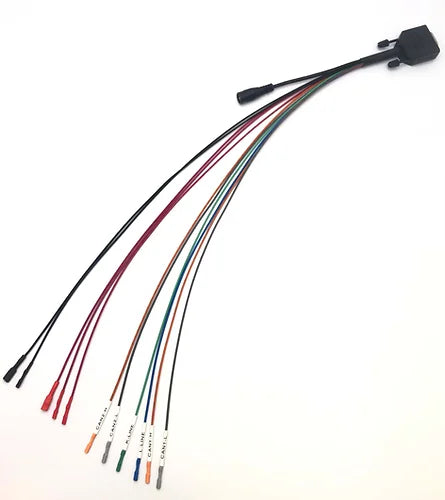

I/O Terminal Breakout Cable
I/O Terminal Breakout Cable
Regular price
£50.00 GBP
Regular price
Sale price
£50.00 GBP
Unit price
/
per
I/O Terminal Breakout Cable for use with I/O Terminal programming tool. Used for easy connection to different ecus for a D-Sub 9-way connector.
For further info see I/O Terminal
DC Power connection 5.5mm X 2.1mm Female
Cable Markers make selecting cables easy without needing to refer to a colour chart.
+12V and GND connections both with 2 x large and 2 x small connectors
Total Length: Approx 50cm
HIGH-QUALITY CABLE
Pinout As below:
- 1 CAN1-H
- 2 CAN1-L
- 3 NC
- 4 K Line
- 5 GND
- 6 L Line
- 7 CAN2-H
- 8 CAN2-L
- 9 + 12V
